Revolutionizing Manufacturing: Exploring the World of Injection Molding

injection molding


In today’s fast-paced world, where precision, efficiency, and cost-effectiveness are paramount, injection molding has emerged as a game-changer in the manufacturing industry. This sophisticated manufacturing process enables the production of a wide range of complex plastic components that are vital to numerous industries, including automotive, electronics, medical, and consumer goods. In this blog, we will delve into the fascinating world of injection molding, exploring its principles, applications, advantages, and future prospects.

Understanding Injection Molding

Injection molding is a manufacturing technique that involves injecting molten plastic material into a specially designed mold, which then cools and solidifies to create a desired shape. It is a highly automated and efficient process that can produce intricate and precise parts in large volumes, with minimal human intervention.

The Process in Detail

Designing the Mold: The first step in injection molding is designing the mold. Skilled engineers create a mold cavity with the desired shape, allowing room for the molten plastic material to flow and cool properly. Factors such as material properties, part geometry, and production volume are taken into consideration during the mold design process.

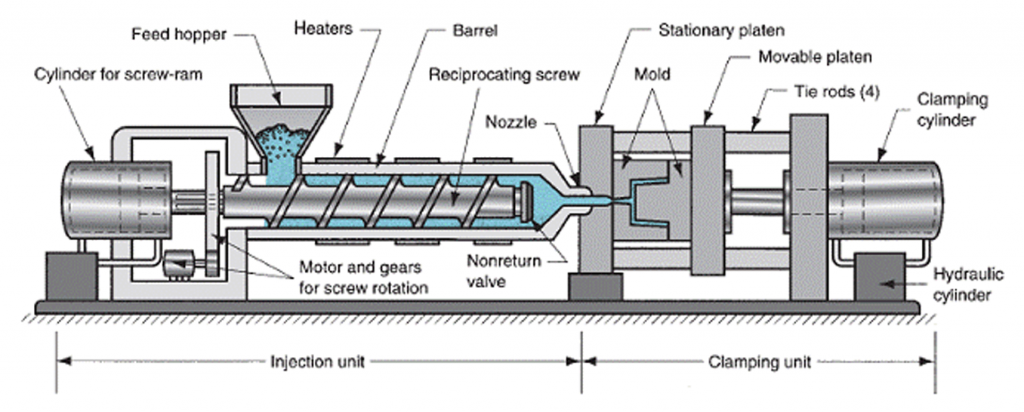

Material Preparation: Next, the selected thermoplastic material, usually in the form of small pellets, is melted in an injection molding machine. The machine comprises a hopper that feeds the pellets into a heated barrel, where they are melted by a reciprocating screw.

Injection: Once the molten plastic reaches the optimal temperature and consistency, it is injected into the mold under high pressure. The injection unit of the machine pushes the material through a nozzle into the mold cavity. The pressure ensures that the material fills the mold completely and accurately.

Cooling and Solidification: After the molten plastic fills the mold cavity, it starts to cool and solidify. Cooling can be facilitated by circulating coolant through the mold or using cooling plates. The cooling time is critical as it affects the part’s quality and cycle time.

Ejection: Once the plastic has solidified, the mold opens, and the part is ejected using ejector pins or plates. The cycle then repeats, and the process continues to produce multiple parts.

injection molding

Applications and Advantages

Injection molding‘s versatility and efficiency make it an ideal choice for a wide array of industries. Some notable applications include:

Automotive Industry: Injection molding is extensively used in automotive manufacturing, producing components such as dashboards, bumpers, interior trims, and electrical connectors. The ability to produce lightweight yet robust parts with complex geometries has revolutionized automobile design.

Electronics and Appliances: Many electronic devices and household appliances rely on injection-molded components for their casings, connectors, switches, and buttons. The precision and cost-effectiveness of the process make it indispensable in this sector.

Medical Field: Injection molding plays a crucial role in the medical industry by manufacturing various medical devices and equipment, including syringes, IV components, surgical instruments, and diagnostic devices. The process ensures high quality, consistency, and stabilizability, meeting stringent regulatory requirements.

Consumer Goods: From packaging materials to toys, from kitchen utensils to sports equipment, injection molding enables the mass production of consumer goods in various shapes, sizes, and colors. It allows for customization and quick turnaround times, meeting the ever-changing demands of consumers.

The advantages of injection molding are numerous:

1. High Precision: Injection molding allows for the production of complex, intricate parts with tight tolerances, ensuring consistent quality and dimensional accuracy.

2. Efficiency and Cost-effectiveness: The automation and high-speed production capabilities of injection molding result in reduced labor costs and shorter cycle times, making it a cost-effective solution for large-scale manufacturing.

3. Material Versatility: A wide range of thermoplastic materials, including polypropylene, polystyrene, polyethylene, and engineering-grade plastics like ABS and PC, can be used in injection molding. This versatility allows for the production of parts with varying mechanical, thermal, and chemical properties.

4. Waste Reduction: Injection molding generates minimal waste as any excess plastic can be reground and reused, contributing to sustainable manufacturing practices.
